32-CH 200V +5V BIAS MUX SPDT

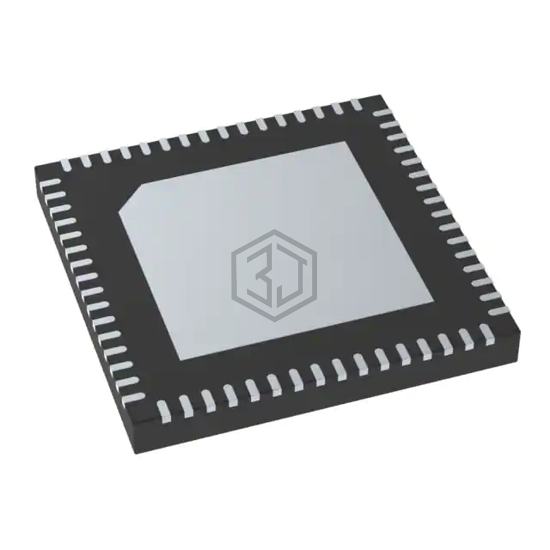

HV2818/R4X is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Microchip Technology. 32-CH 200V +5V BIAS MUX SPDT. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 64-VFQFN Exposed Pad, number of circuits 16.
In Stock: 74
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 16 |
| On-State Resistance (Max) | 9Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 4.5V ~ 6.3V |
| Voltage - Supply, Dual (V±) | 4.5V ~ 6.3V |
| Switch Time (Ton, Toff) (Max) | 5µs, 5µs |
| -3db Bandwidth | 50MHz |
| Charge Injection | 100pC |
| Channel Capacitance (CS(off), CD(off)) | 21pF |
| Current - Leakage (IS(off)) (Max) | 3µA |
| Crosstalk | -70dB @ 5MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-VQFN (9x9) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4800CQI+T | Analog Devices Inc./Maxim Integrated | IC SWITCH OCTAL SPST 28PLCC | 80% | View |
| MAX4802CXZ+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST OCTAL 72CSBGA | 80% | View |
| MAX4800CXZ+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST OCTAL 72CSBGA | 80% | View |
| MAX4802CTM+ | Analog Devices Inc./Maxim Integrated | IC SWITCH OCTAL SPST 48TQFN | 80% | View |
| MAX4801CQI+ | Analog Devices Inc./Maxim Integrated | IC SWITCH OCTAL SPST 28PLCC | 80% | View |
| MAX4800ACCM+ | Analog Devices Inc./Maxim Integrated | IC SWITCH OCTAL SPST 48LQFP | 78% | View |
Submit your RFQ for HV2818/R4X and get a quote within 24 hours.
