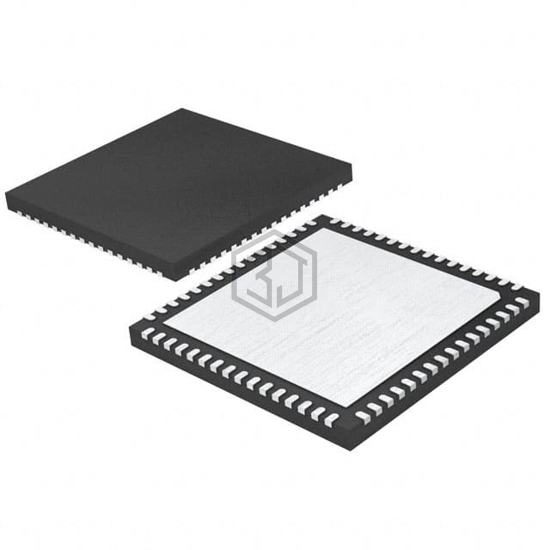

16-CH 300V MUX (SPST), ONE BLEED
HV2721/R4X is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Microchip Technology. 16-CH 300V MUX (SPST), ONE BLEED. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 64-VFQFN Exposed Pad, number of circuits 1.
In Stock: 115
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 30Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.5Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 6µs, 6µs |
| -3db Bandwidth | - |
| Charge Injection | 1000pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF |
| Current - Leakage (IS(off)) (Max) | 15µA |
| Crosstalk | -70dB @ 5MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-VQFN (9x9) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HV2722/R4X | Microchip Technology | 16-CH 300V MUX (SPST), ONE BLEED | 100% | View |
| HV2621/R4X | Microchip Technology | 16-CH 300V MUX (SPST), NO BLEED | 100% | View |
| ADG7421FBCPZ-RL7 | Analog Devices Inc. | 60V OV PROTECTED, 5V SPSTX1 SWIT | 62% | View |
| ADG5401FBCPZ-RL7 | Analog Devices Inc. | 60V OV PROTECTED HV SPSTX1 SWITC | 60% | View |
| MAX14661ETI+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 16:2 TQFN | 53% | View |
| MAX14661ETI+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 16:2 TQFN | 53% | View |
Submit your RFQ for HV2721/R4X and get a quote within 24 hours.
