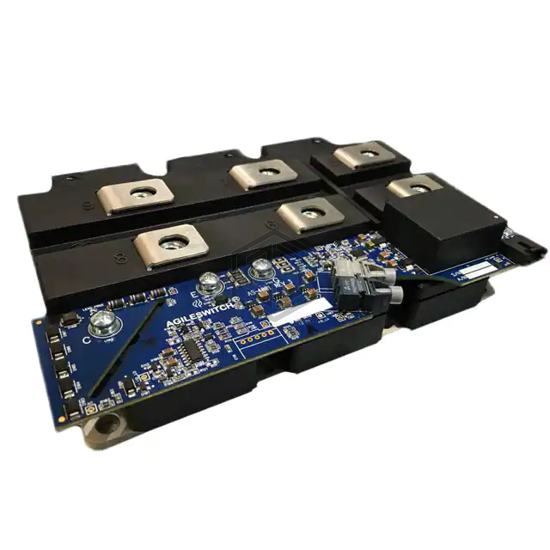

IC GATE DRVR HALF-BRIDGE MODULE
HPFM-00117 is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HALF-BRIDGE MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - supply 14.5V ~ 16V, package / case Module.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Voltage - Supply | 14.5V ~ 16V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 30A, 30A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 600ns, 350ns |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2SP0325T2A1-CM2500DY-24S | Power Integrations | MODULE GATE DVR P&P ELECTRIC | 86% | View |
| 2SP0325V2A1-CM2500DY-24S | Power Integrations | MODULE GATE DVR P&P FIBER OPTIC | 86% | View |
| 2SP0325T2A1-CM1800DY-34S | Power Integrations | MODULE GATE DVR P&P ELECTRIC | 86% | View |
| 2SP0325V2A1-CM1800DY-34S | Power Integrations | MODULE GATE DVR P&P FIBER OPTIC | 86% | View |
| 2SC0435T2H0C-17 | Power Integrations | IC GATE DRVR HI/LOW SIDE MODULE | 62% | View |
| 2SP0115T2D0-12 | Power Integrations | IC GATE DRVR HALF-BRIDGE MODULE | 53% | View |
Submit your RFQ for HPFM-00117 and get a quote within 24 hours.
