MOSFET N-CH 1000V 20A SP1

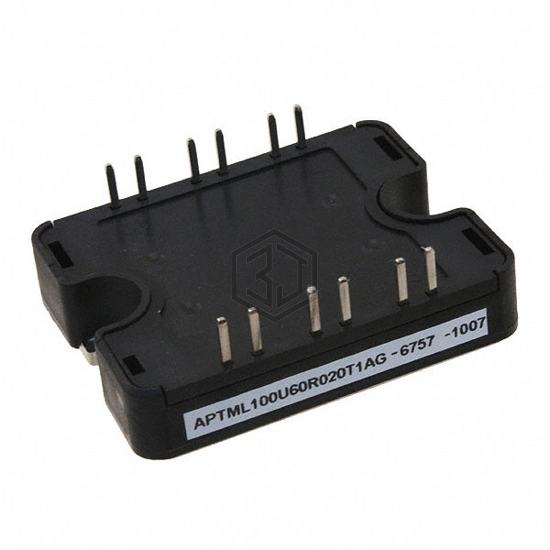

APTML100U60R020T1AG is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 1000V 20A SP1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP1.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 720mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 2.5mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 6000 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 520W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | SP1 |
| Package / Case | SP1 |
Submit your RFQ for APTML100U60R020T1AG and get a quote within 24 hours.
