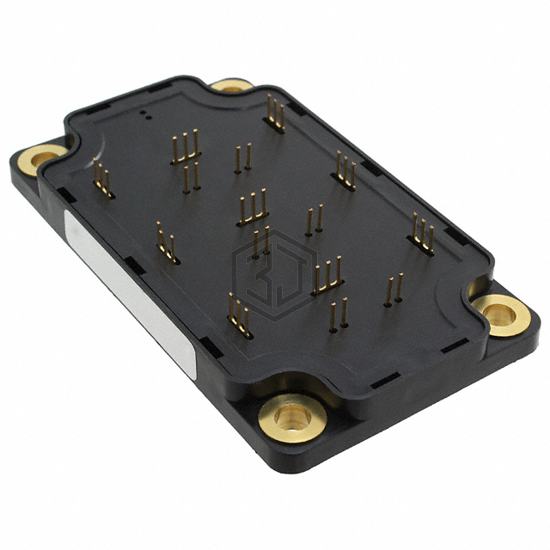

IGBT MODULE 1200V 100A 350W SP6P
APTGT75TA120PG is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 100A 350W SP6P. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, current - collector (ic) (max) 100 A.
In Stock: 5,502
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Three Phase |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 100 A |
| Power - Max | 350 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 5.34 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP6 |
| Supplier Device Package | SP6-P |
Submit your RFQ for APTGT75TA120PG and get a quote within 24 hours.
