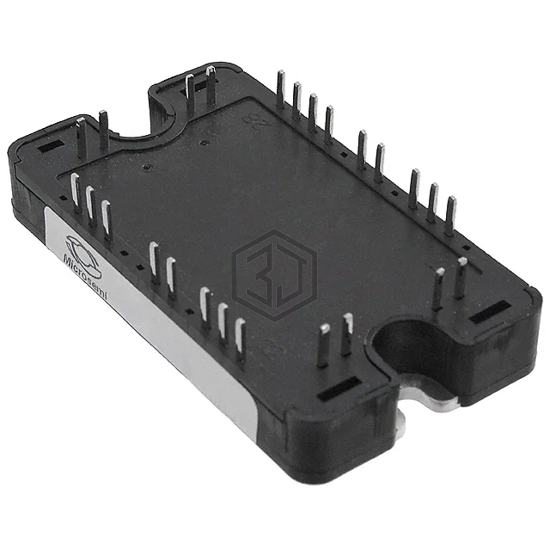

IGBT MODULE 600V 80A 176W SP3
APTGT50H60T3G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 80A 176W SP3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SP3, current - collector (ic) (max) 80 A.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Full Bridge Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 80 A |
| Power - Max | 176 W |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 50A |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 3.15 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP3 |
| Supplier Device Package | SP3 |
Submit your RFQ for APTGT50H60T3G and get a quote within 24 hours.
