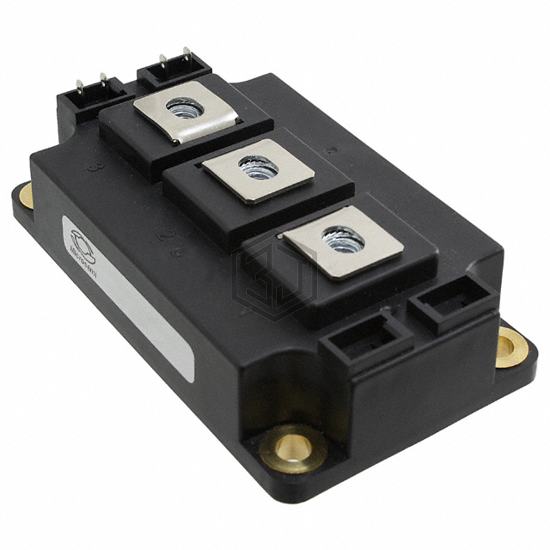

IGBT MODULE 600V 500A 1250W D3
APTGT400A60D3G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 500A 1250W D3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case D-3 Module, current - collector (ic) (max) 500 A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 500 A |
| Power - Max | 1250 W |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 400A |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 24 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | D-3 Module |
| Supplier Device Package | D3 |
Submit your RFQ for APTGT400A60D3G and get a quote within 24 hours.
