IGBT MODULE 1200V 420A 1380W SP6

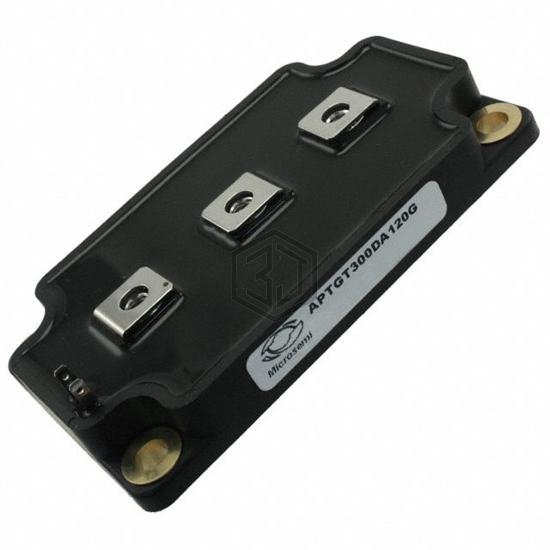

APTGT300DA120G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 420A 1380W SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP6, current - collector (ic) (max) 420 A.
In Stock: 7,646
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 420 A |
| Power - Max | 1380 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 21 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP6 |
| Supplier Device Package | SP6 |
Submit your RFQ for APTGT300DA120G and get a quote within 24 hours.
