IGBT MODULE 1700V 150A 560W SP4

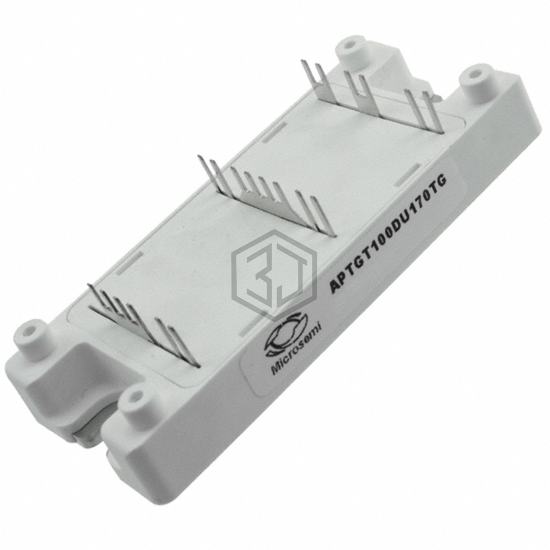

APTGT100DU170TG is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1700V 150A 560W SP4. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP4, current - collector (ic) (max) 150 A.
In Stock: 9,046
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Dual, Common Source |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector (Ic) (Max) | 150 A |
| Power - Max | 560 W |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 9 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP4 |
| Supplier Device Package | SP4 |
Submit your RFQ for APTGT100DU170TG and get a quote within 24 hours.
