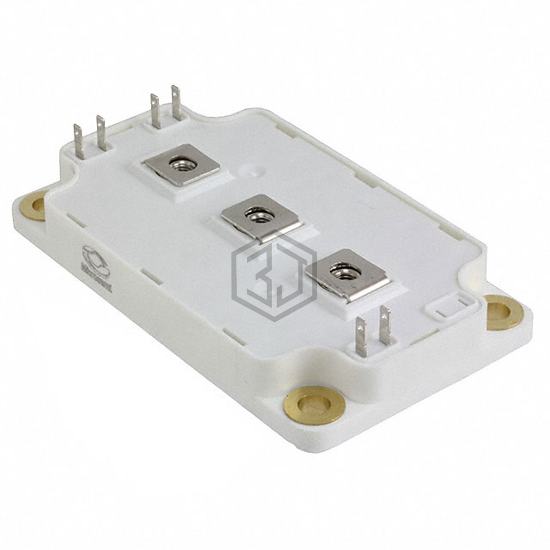

IGBT MODULE 1200V 700A 1900W SP6
APTGLQ400A120T6G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 700A 1900W SP6. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case SP6, current - collector (ic) (max) 700 A.
In Stock: 7,221
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 700 A |
| Power - Max | 1900 W |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 400A |
| Current - Collector Cutoff (Max) | 200 µA |
| Input Capacitance (Cies) @ Vce | 24.6 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | SP6 |
| Supplier Device Package | SP6 |
Submit your RFQ for APTGLQ400A120T6G and get a quote within 24 hours.
