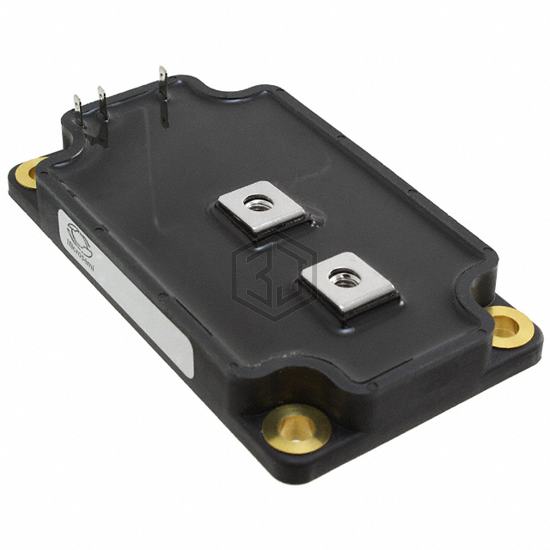

IGBT MODULE 1200V 610A 2307W SP6
APTGL475U120DAG is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 610A 2307W SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SP6, current - collector (ic) (max) 610 A.
In Stock: 5,219
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Single |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 610 A |
| Power - Max | 2307 W |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 400A |
| Current - Collector Cutoff (Max) | 4 mA |
| Input Capacitance (Cies) @ Vce | 24.6 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP6 |
| Supplier Device Package | SP6 |
Submit your RFQ for APTGL475U120DAG and get a quote within 24 hours.
