IGBT MODULE 1200V 305A 1000W SP6

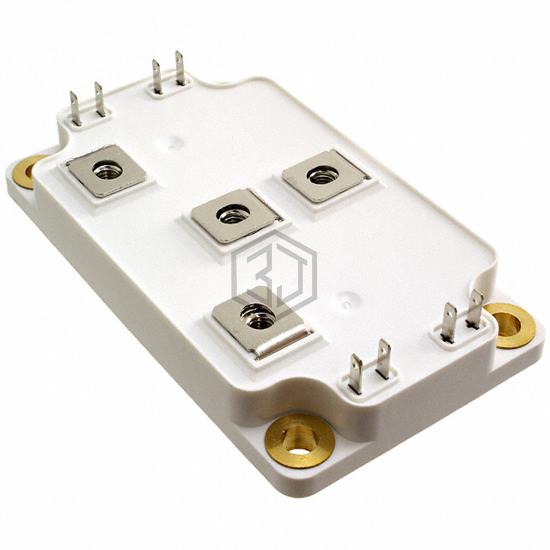

APTGL240TL120G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 305A 1000W SP6. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SP6, current - collector (ic) (max) 305 A.
In Stock: 2,234
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Three Level Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 305 A |
| Power - Max | 1000 W |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 200A |
| Current - Collector Cutoff (Max) | 2 mA |
| Input Capacitance (Cies) @ Vce | 12.3 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP6 |
| Supplier Device Package | SP6 |
Submit your RFQ for APTGL240TL120G and get a quote within 24 hours.
