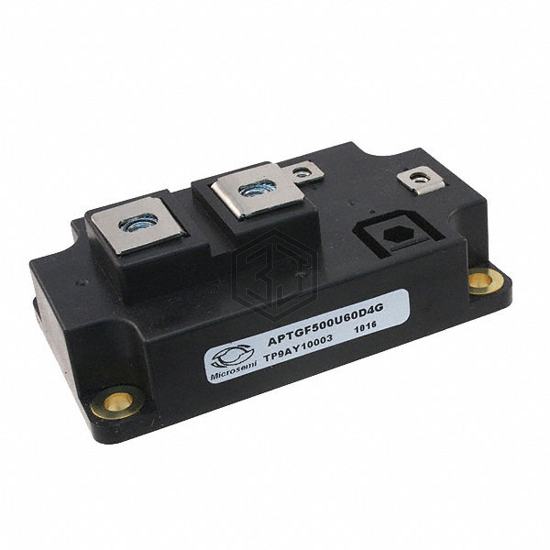

IGBT MODULE 600V 625A 2000W D4
APTGF500U60D4G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 625A 2000W D4. Key specifications: mounting type Chassis Mount, package / case D4, current - collector (ic) (max) 625 A, power - max 2000 W.
In Stock: 6,121
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | NPT |
| Configuration | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 625 A |
| Power - Max | 2000 W |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 500A |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 26 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | - |
| Mounting Type | Chassis Mount |
| Package / Case | D4 |
| Supplier Device Package | D4 |
Submit your RFQ for APTGF500U60D4G and get a quote within 24 hours.
