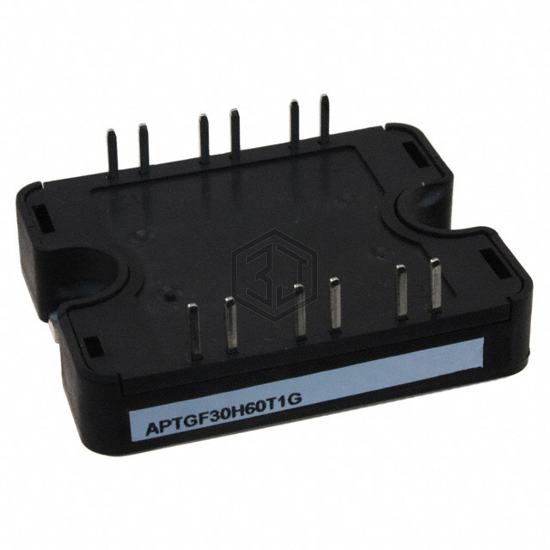

IGBT MODULE 600V 42A 140W SP1
APTGF30H60T1G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 600V 42A 140W SP1. Key specifications: mounting type Chassis Mount, package / case SP1, current - collector (ic) (max) 42 A, power - max 140 W.
In Stock: 6,485
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | NPT |
| Configuration | Full Bridge Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 42 A |
| Power - Max | 140 W |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 30A |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 1.35 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | - |
| Mounting Type | Chassis Mount |
| Package / Case | SP1 |
| Supplier Device Package | SP1 |
Submit your RFQ for APTGF30H60T1G and get a quote within 24 hours.
