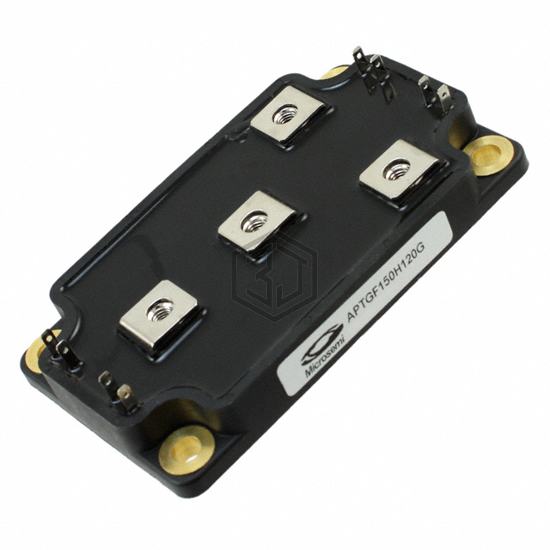

IGBT MODULE 1200V 200A 961W SP6
APTGF150H120G is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 200A 961W SP6. Key specifications: mounting type Chassis Mount, package / case SP6, current - collector (ic) (max) 200 A, power - max 961 W.
In Stock: 8,060
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | NPT |
| Configuration | Full Bridge Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 200 A |
| Power - Max | 961 W |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 150A |
| Current - Collector Cutoff (Max) | 350 µA |
| Input Capacitance (Cies) @ Vce | 10.2 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | - |
| Mounting Type | Chassis Mount |
| Package / Case | SP6 |
| Supplier Device Package | SP6 |
Submit your RFQ for APTGF150H120G and get a quote within 24 hours.
