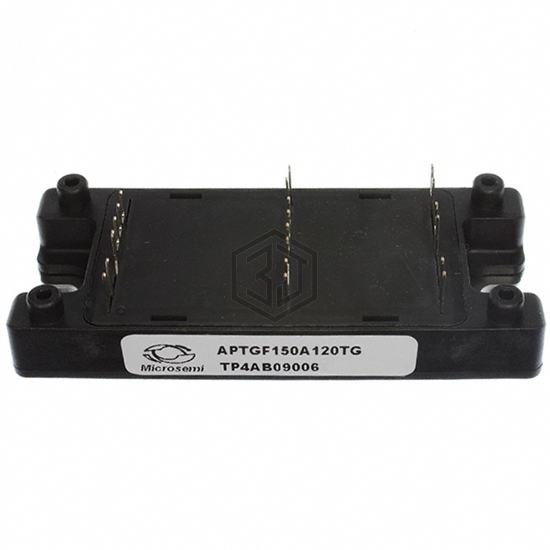

IGBT MODULE 1200V 200A 961W SP4
APTGF150A120TG is a Transistors - IGBTs - Modules manufactured by Microchip Technology. IGBT MODULE 1200V 200A 961W SP4. Key specifications: mounting type Chassis Mount, package / case SP4, current - collector (ic) (max) 200 A, power - max 961 W.
In Stock: 2,562
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | NPT |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 200 A |
| Power - Max | 961 W |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 150A |
| Current - Collector Cutoff (Max) | 350 µA |
| Input Capacitance (Cies) @ Vce | 10.2 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | - |
| Mounting Type | Chassis Mount |
| Package / Case | SP4 |
| Supplier Device Package | SP4 |
Submit your RFQ for APTGF150A120TG and get a quote within 24 hours.
