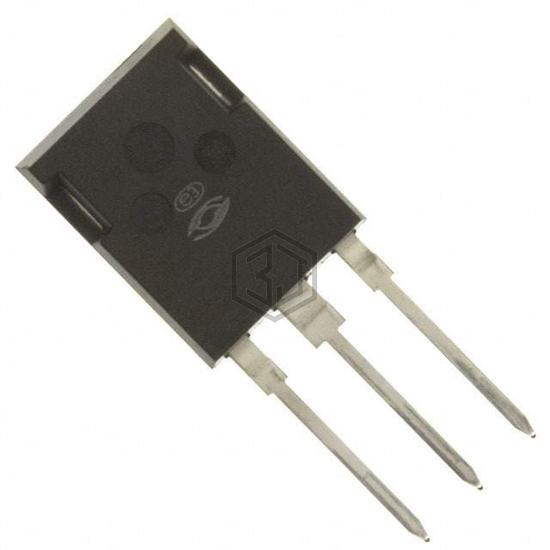

MOSFET N-CH 500V 57A T-MAX
APT50M75B2FLLG is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 500V 57A T-MAX. Key specifications: mounting type Through Hole, package / case TO-247-3 Variant.
In Stock: 2,910
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 57A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 28.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 125 nC @ 10 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 5590 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | - |
| Mounting Type | Through Hole |
| Supplier Device Package | T-MAX™ [B2] |
| Package / Case | TO-247-3 Variant |
Submit your RFQ for APT50M75B2FLLG and get a quote within 24 hours.
