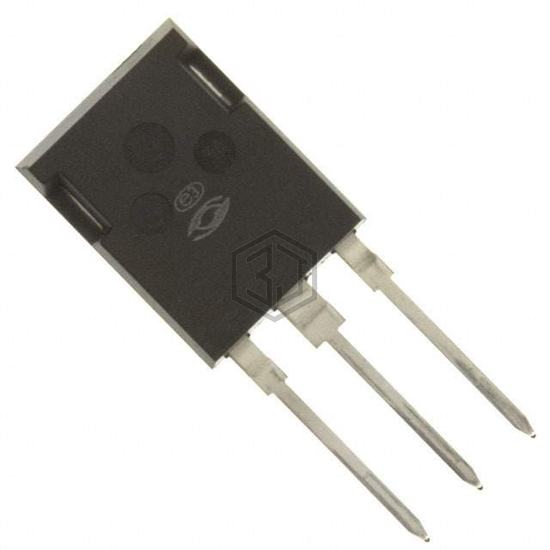

MOSFET N-CH 800V 34A T-MAX
APT34N80B2C3G is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 800V 34A T-MAX. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant.
In Stock: 41
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 34A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 145mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | 3.9V @ 2mA |
| Gate Charge (Qg) (Max) @ Vgs | 355 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4510 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 417W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | T-MAX™ [B2] |
| Package / Case | TO-247-3 Variant |
Submit your RFQ for APT34N80B2C3G and get a quote within 24 hours.
