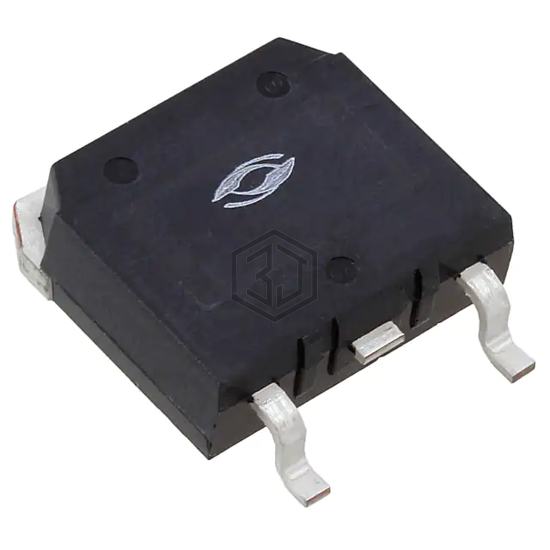

MOSFET N-CH 1000V 17A D3PAK
APT17F100S is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 1000V 17A D3PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA.
In Stock: 5,464
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 780mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 150 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 4845 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 625W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D3Pak |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
Submit your RFQ for APT17F100S and get a quote within 24 hours.
