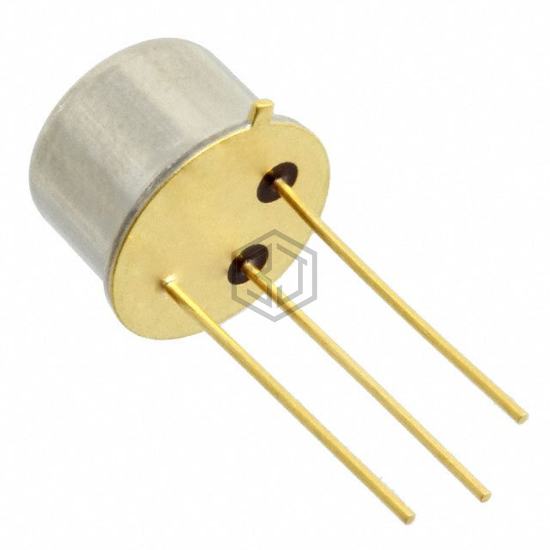

MOSFET N-CH 60V 410MA TO39
2N6660 is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 60V 410MA TO39. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-205AD, TO-39-3 Metal Can.
In Stock: 2,161
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 410mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 24 V |
| FET Feature | - |
| Power Dissipation (Max) | 6.25W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-39 |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
Submit your RFQ for 2N6660 and get a quote within 24 hours.
