DUAL-CHANNEL AUGMENTED CORE 2 -

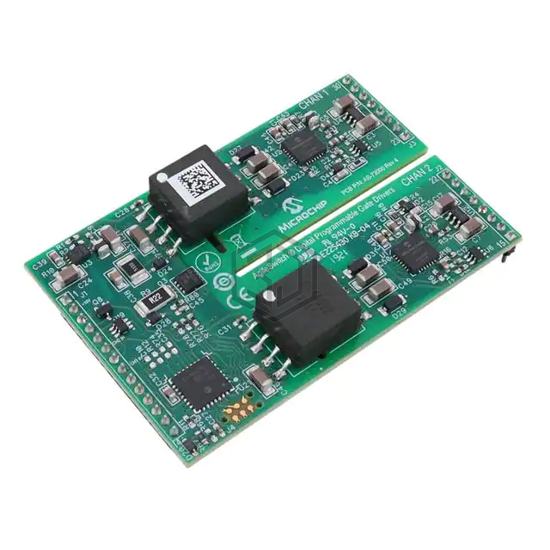

2ASC-12A2HP is a PMIC - Gate Drivers manufactured by Microchip Technology. DUAL-CHANNEL AUGMENTED CORE 2 -. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 14V ~ 16V, package / case 30-DIP Module.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | IGBT, SiC MOSFET |
| Voltage - Supply | 14V ~ 16V |
| Logic Voltage - VIL, VIH | 1.25V, 3.5V |
| Current - Peak Output (Source, Sink) | 10A, 10A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 80ns, 90ns |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 30-DIP Module |
| Supplier Device Package | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2ASC-12A1HP | Microchip Technology | SILICON CARBIDE GATE DRIVER | 100% | View |
| HIP2500IP1 | Harris Corporation | HALF BRIDGE 500VDC DRIVER | 52% | View |
| HIP5016IS1 | Harris Corporation | HB BASED PERIPHERAL DRIVER W/PWM | 51% | View |
| HIP5015IS1 | Harris Corporation | HB BASED PERIPHERAL DRIVER W/PWM | 51% | View |
Submit your RFQ for 2ASC-12A2HP and get a quote within 24 hours.
