MOSFET N-CH 650V 11A DFN5060

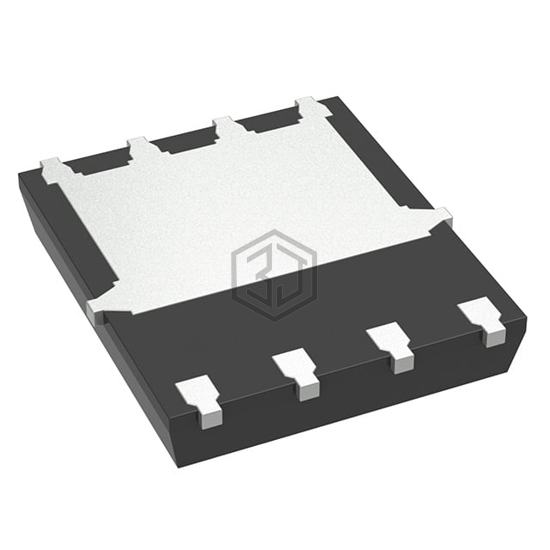

MSJAC11N65Y-TP is a Transistors - FETs, MOSFETs - Single manufactured by Micro Commercial Co. MOSFET N-CH 650V 11A DFN5060. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.
In Stock: 20,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 380mOhm @ 5.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 21 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 901 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 78W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN5060 |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for MSJAC11N65Y-TP and get a quote within 24 hours.
