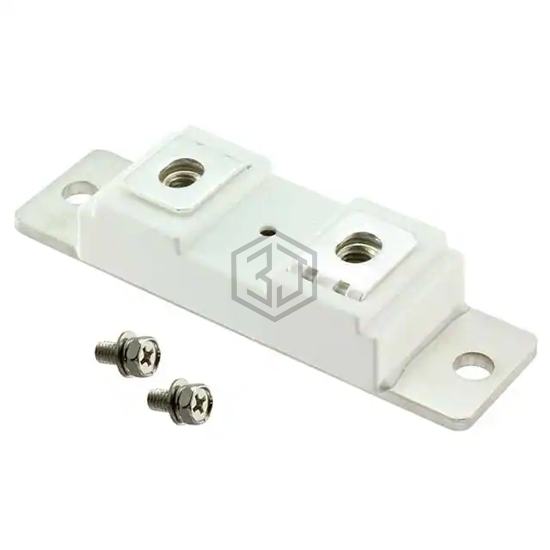

MF400K04F3-BP
DIODE MODULE GP 400V 200A F3
MF400K04F3-BP is a Diodes - Rectifiers - Arrays manufactured by Micro Commercial Co. DIODE MODULE GP 400V 200A F3. Key specifications: mounting type Chassis Mount, package / case F3 Module.
In Stock: 8,563
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Configuration | 1 Pair Common Anode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) (per Diode) | 200A |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 200 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 135 ns |
| Current - Reverse Leakage @ Vr | 1 mA @ 400 V |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Mounting Type | Chassis Mount |
| Package / Case | F3 Module |
| Supplier Device Package | F3 |
Frequently Asked Questions
MF400K04F3-BP is a Diodes - Rectifiers - Arrays manufactured by Micro Commercial Co. DIODE MODULE GP 400V 200A F3
The mounting type of MF400K04F3-BP is Chassis Mount.
The package type of MF400K04F3-BP is F3 Module.
