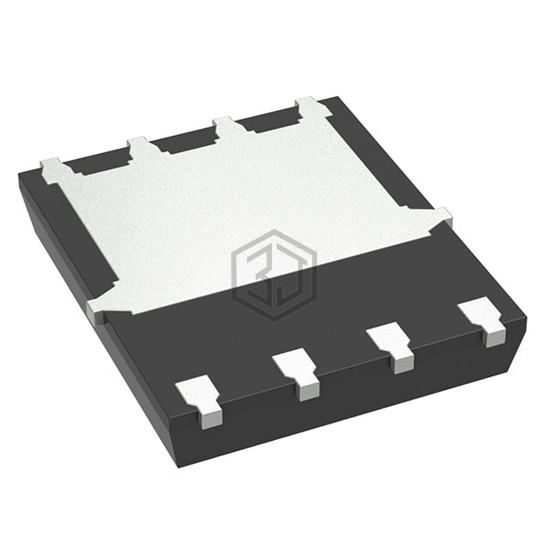

P-CHANNEL MOSFET, DFN3333
MCG55P02A-TP is a Transistors - FETs, MOSFETs - Single manufactured by Micro Commercial Co. P-CHANNEL MOSFET, DFN3333. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VDFN Exposed Pad.
In Stock: 11,980
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 55A |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 8.3mOhm @ 15A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 149 nC @ 10 V |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 6358 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.2W (Ta), 38W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN3333 |
| Package / Case | 8-VDFN Exposed Pad |
Submit your RFQ for MCG55P02A-TP and get a quote within 24 hours.
