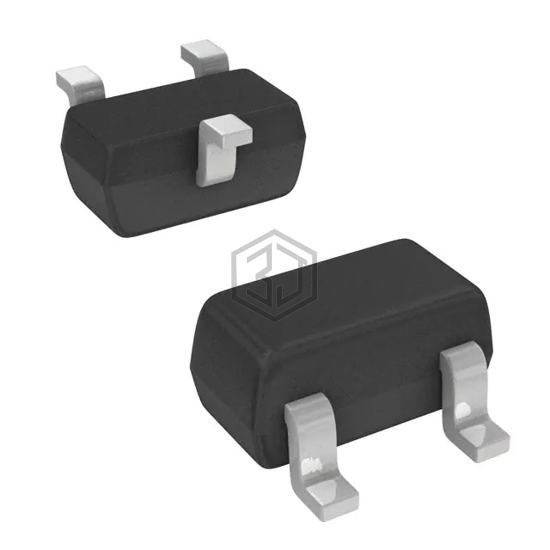

N-CHANNEL MOSFET, SOT-523
BSS138KT-TP is a Transistors - FETs, MOSFETs - Single manufactured by Micro Commercial Co. N-CHANNEL MOSFET, SOT-523. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-523.
In Stock: 2,856
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 50 V |
| Current - Continuous Drain (Id) @ 25°C | 250mA |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 1.6Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.7 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 22800 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 250mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-523 |
| Package / Case | SOT-523 |
Submit your RFQ for BSS138KT-TP and get a quote within 24 hours.
