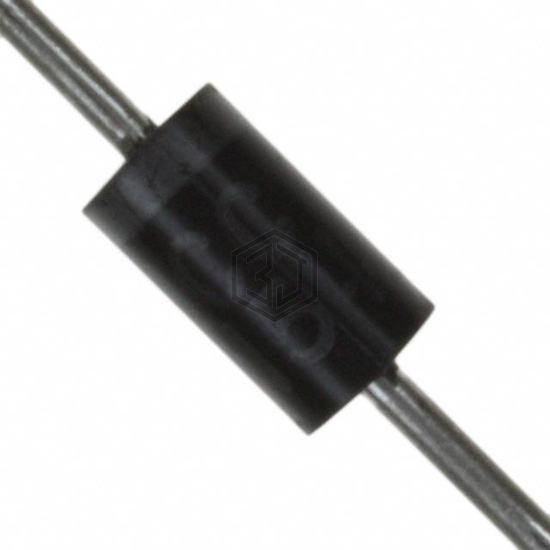

1N5822-TP
DIODE SCHOTTKY 40V 3A DO201AD
1N5822-TP is a Diodes - Rectifiers - Single manufactured by Micro Commercial Co. DIODE SCHOTTKY 40V 3A DO201AD. Key specifications: mounting type Through Hole, package / case DO-201AD, Axial.
In Stock: 13,554
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 525 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 40 V |
| Capacitance @ Vr, F | 200pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-201AD, Axial |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 125°C |
Frequently Asked Questions
1N5822-TP is a Diodes - Rectifiers - Single manufactured by Micro Commercial Co. DIODE SCHOTTKY 40V 3A DO201AD
The mounting type of 1N5822-TP is Through Hole.
The package type of 1N5822-TP is DO-201AD, Axial.
