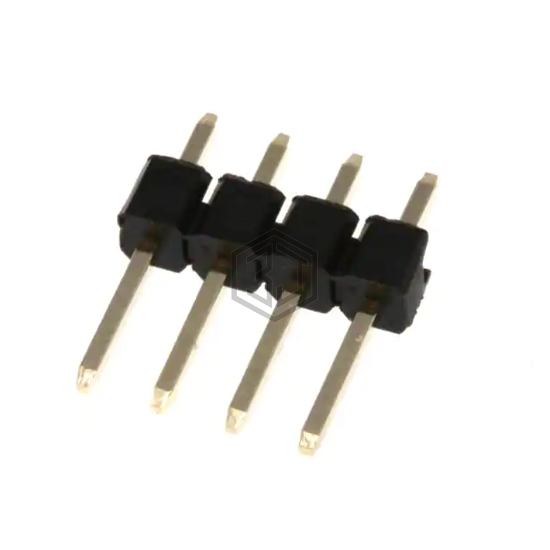

PIN HEADER, THR, SINGLE ROW, .10
PR20204VBNN is a Rectangular Connectors - Headers, Male Pins manufactured by METZ CONNECT USA Inc.. PIN HEADER, THR, SINGLE ROW, .10. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, contact material Copper Zinc, termination Solder.
In Stock: 28,391
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.457" (11.61mm) |
| Insulation Height | 0.098" (2.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - |
| Contact Material | Copper Zinc |
| Insulation Material | Polyethylene |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for PR20204VBNN and get a quote within 24 hours.
