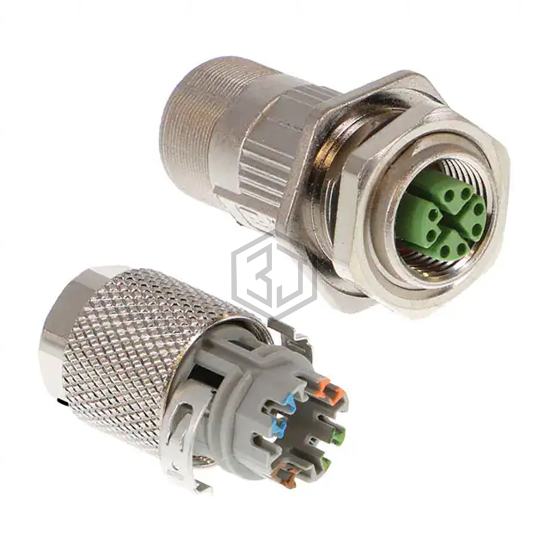

CONN JACK FMALE 8POS GOLD IDC
MMF881A315-0001 is a Circular Connectors manufactured by METZ CONNECT USA Inc.. CONN JACK FMALE 8POS GOLD IDC. Key specifications: mounting type Free Hanging (In-Line); Panel Mount, operating temperature -40°C ~ 85°C, voltage rating 50VAC, 60VDC, color Silver.
In Stock: 46
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack, Female Sockets |
| Number of Positions | 8 |
| Shell Size - Insert | M12-8 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line); Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | IDC |
| Fastening Type | Threaded |
| Orientation | X |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Contact Finish - Mating | Nickel-Gold |
| Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Shielded |
| Current Rating (Amps) | 0.5A |
| Voltage Rating | 50VAC, 60VDC |
| Cable Opening | 0.197" ~ 0.382" (5.00mm ~ 9.70mm) |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for MMF881A315-0001 and get a quote within 24 hours.
