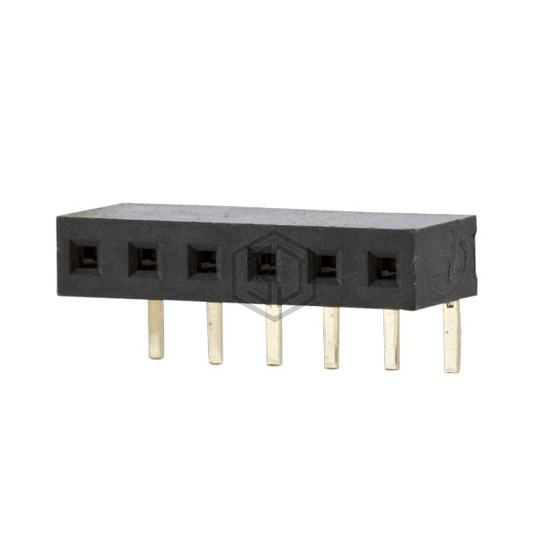

RECEPTACLE, THR, SINGLE ROW, 2.0
FR20C06HBNN is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by METZ CONNECT USA Inc.. RECEPTACLE, THR, SINGLE ROW, 2.0. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 105°C, termination Solder, number of positions 6.
In Stock: 501
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.110" (2.79mm) |
| Contact Length - Post | 0.100" (2.54mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | - |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for FR20C06HBNN and get a quote within 24 hours.
