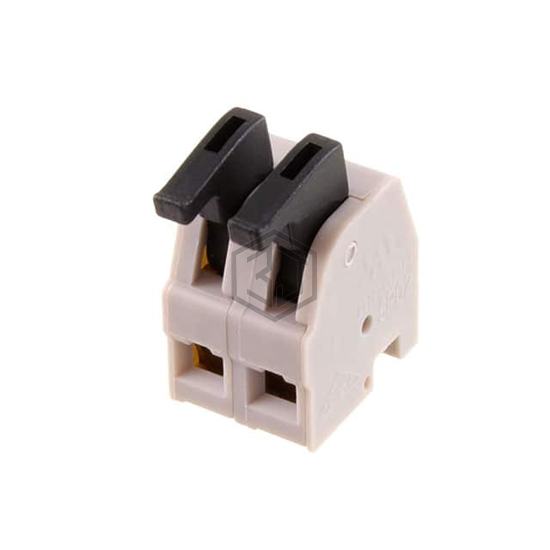

SPRING CLAMP TERMINAL BLOCK, PLU
ASP0250204 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by METZ CONNECT USA Inc.. SPRING CLAMP TERMINAL BLOCK, PLU. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 105°C, color Gray, termination style Screwless - Spring Cage, Tension Clamp.
In Stock: 802
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug for Unshrouded Header |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 8 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 16-28 AWG |
| Wire Gauge or Range - mm² | 0.08-1.5mm² |
| Color | Gray |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | Tin |
| Features | Lever Actuated |
Submit your RFQ for ASP0250204 and get a quote within 24 hours.
