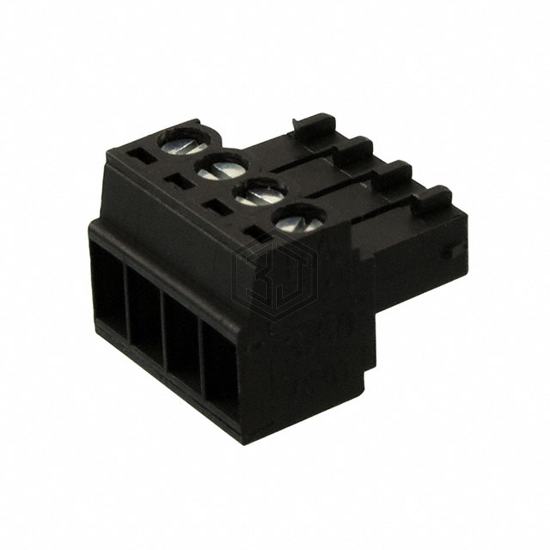

SCREW TYPE, TERMINAL BLOCK, VERT
31339104 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by METZ CONNECT USA Inc.. SCREW TYPE, TERMINAL BLOCK, VERT. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 105°C, color Black, termination style Screw - Rising Cage Clamp.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Number of Levels | 1 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 8 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 16-28 AWG |
| Wire Gauge or Range - mm² | 0.08-1.5mm² |
| Color | Black |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | Tin |
| Features | Retention Latches (Non-Wire Side) |
Submit your RFQ for 31339104 and get a quote within 24 hours.
