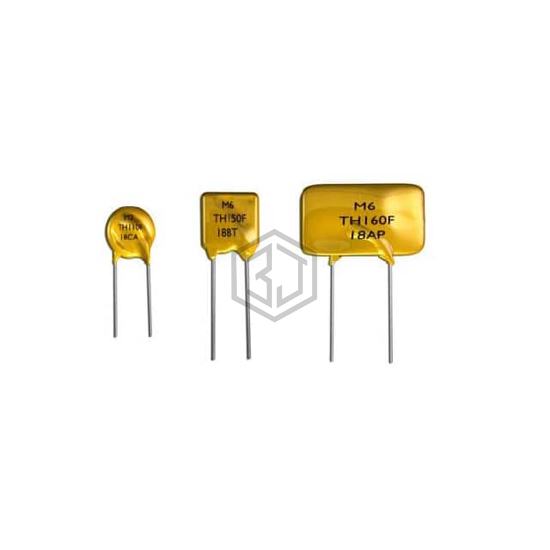

PTC RESET FUSE 100V 0.12A RADIAL
MPTH250V120V is a PTC Resettable Fuses manufactured by Meritek. PTC RESET FUSE 100V 0.12A RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Disc, current - max 3 A.
In Stock: 6,029
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 100V |
| Current - Max | 3 A |
| Current - Hold (Ih) (Max) | 120 mA |
| Current - Trip (It) | 240 mA |
| Time to Trip | 2 s |
| Resistance - Initial (Ri) (Min) | 4 Ohms |
| Resistance - Post Trip (R1) (Max) | 16 Ohms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.256" L x 0.181" W (6.50mm x 4.60mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.197" (5.00mm) |
Submit your RFQ for MPTH250V120V and get a quote within 24 hours.
