FIXED IND 4.7UH 28A 2.86MOHM SMD

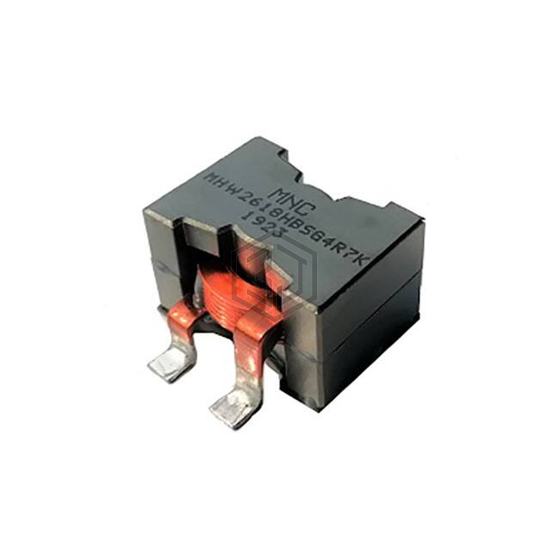

MHW2618HBSG4R7K is a Fixed Inductors manufactured by Mentech Technology USA Inc.. FIXED IND 4.7UH 28A 2.86MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 28 A.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Planar |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 28 A |
| Current - Saturation (Isat) | 61.2A |
| Shielding | - |
| DC Resistance (DCR) | 2.86mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.098" L x 1.098" W (27.94mm x 27.94mm) |
| Height - Seated (Max) | 0.700" (17.78mm) |
Submit your RFQ for MHW2618HBSG4R7K and get a quote within 24 hours.
