FIXED IND 150NH 48A 0.55MOHM SMD

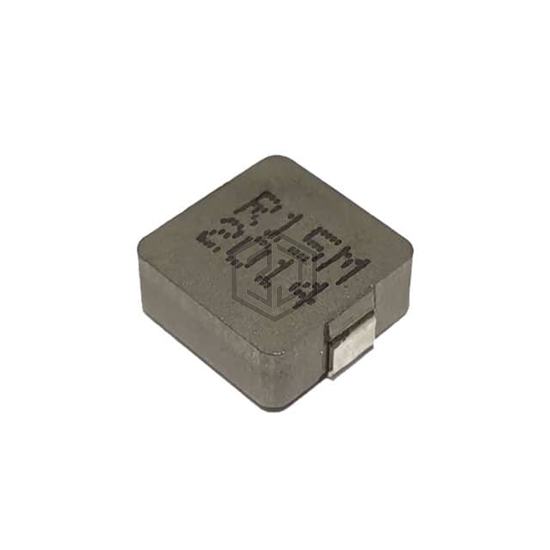

MHA1040NSGR15M is a Fixed Inductors manufactured by Mentech Technology USA Inc.. FIXED IND 150NH 48A 0.55MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 48 A.
In Stock: 700
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 150 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 48 A |
| Current - Saturation (Isat) | 65A |
| Shielding | - |
| DC Resistance (DCR) | 0.55mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.272" L x 0.256" W (11.15mm x 10.00mm) |
| Height - Seated (Max) | 0.150" (3.80mm) |
Submit your RFQ for MHA1040NSGR15M and get a quote within 24 hours.
