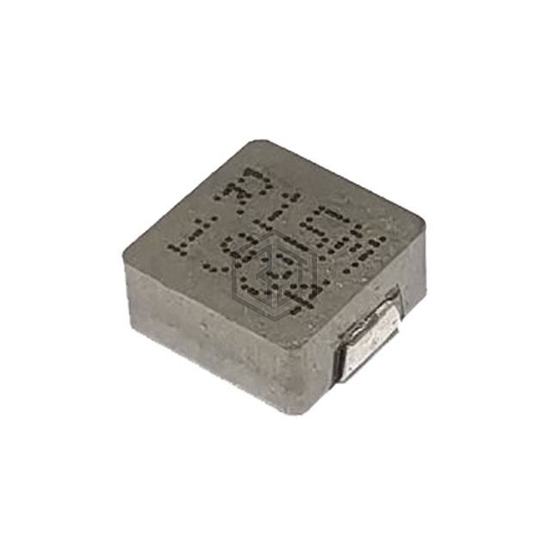

FIXED IND 150NH 35A 0.9MOHM SMD
MHA0730SGR15MA is a Fixed Inductors manufactured by Mentech Technology USA Inc.. FIXED IND 150NH 35A 0.9MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 35 A.
In Stock: 1,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 150 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 35 A |
| Current - Saturation (Isat) | 41A |
| Shielding | - |
| DC Resistance (DCR) | 0.9mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.256" W (7.20mm x 6.50mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for MHA0730SGR15MA and get a quote within 24 hours.
