FIXED IND 470NH 18A 4.1MOHM SMD

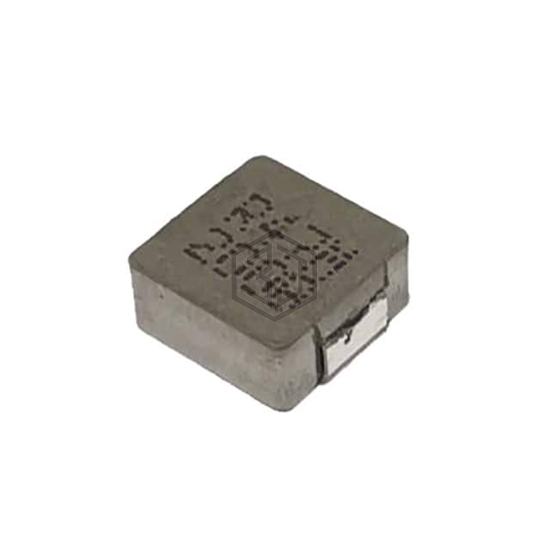

MHA0730NSGR47M is a Fixed Inductors manufactured by Mentech Technology USA Inc.. FIXED IND 470NH 18A 4.1MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 18 A.
In Stock: 1,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 18 A |
| Current - Saturation (Isat) | 20A |
| Shielding | - |
| DC Resistance (DCR) | 4.1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.272" L x 0.256" W (6.90mm x 6.50mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for MHA0730NSGR47M and get a quote within 24 hours.
