MPD (Memory Protection Devices)
CONN PWR JACK 2.5X5.5MM SOLDER

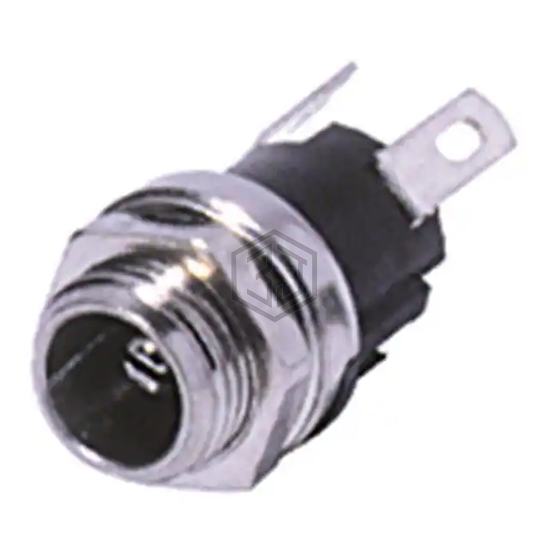

EJ501B is a Barrel - Power Connectors manufactured by MPD (Memory Protection Devices). CONN PWR JACK 2.5X5.5MM SOLDER. Key specifications: mounting type Chassis Mount, voltage - rated 12VDC, current rating (amps) 5 A, termination Solder Eyelet(s).
In Stock: 8,427
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.220" (5.60mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Chassis Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | 12VDC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for EJ501B and get a quote within 24 hours.
