IC SENSOR POSITION PSI-5 OUTPUT

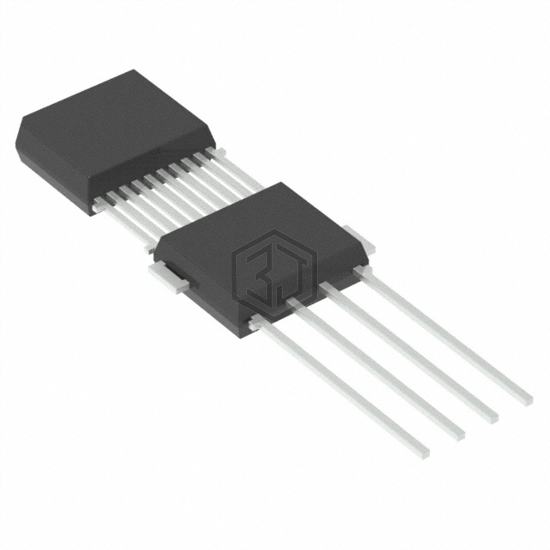

MLX90373KVS-ABA-100-SP is a Position Sensors - Angle, Linear Position Measuring manufactured by Melexis Technologies NV. IC SENSOR POSITION PSI-5 OUTPUT. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - supply 6V ~ 18V, package / case 4-SIP Module.
In Stock: 59
| Attribute | Value |
|---|---|
| Product Status | Active |
| For Measuring | Linear, Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Programmable |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±1° |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 6V ~ 18V |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 4-SIP Module |
| Supplier Device Package | 4-DMP |
Submit your RFQ for MLX90373KVS-ABA-100-SP and get a quote within 24 hours.
