SENSOR ROTARY 360DEG PC PIN

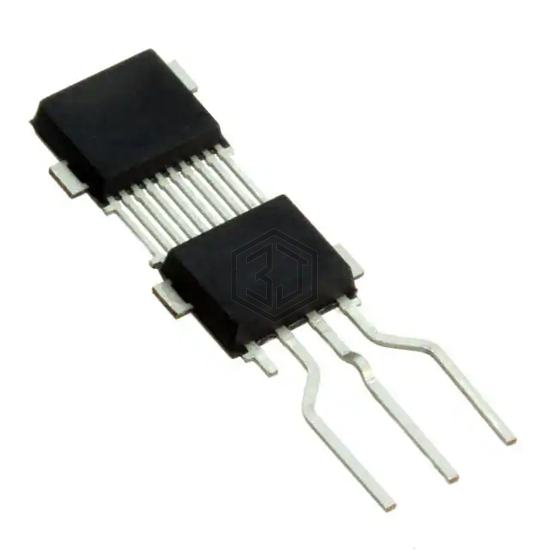

MLX90364LVS-ADD-203-SP is a Position Sensors - Angle, Linear Position Measuring manufactured by Melexis Technologies NV. SENSOR ROTARY 360DEG PC PIN. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, voltage - supply 4.5V ~ 5.5V, package / case 4-SIP Module, Formed Leads.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| For Measuring | Linear, Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | Analog, PWM |
| Output Signal | - |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±2.5° |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 150°C |
| Package / Case | 4-SIP Module, Formed Leads |
| Supplier Device Package | 4-DMP |
Submit your RFQ for MLX90364LVS-ADD-203-SP and get a quote within 24 hours.
