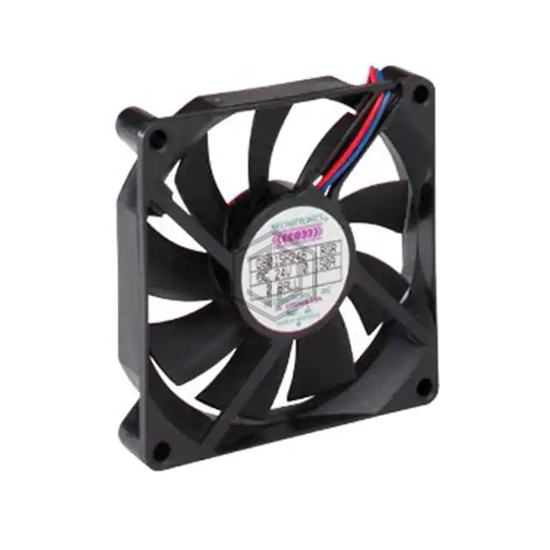

FAN 80X15MM TACH IP57 12VDC
G8015H12B1-AGR-WS-EM is a DC Brushless Fans (BLDC) manufactured by Mechatronics Fan Group. FAN 80X15MM TACH IP57 12VDC. Key specifications: voltage - rated 12VDC, size / dimension Square - 80mm L x 80mm H, termination 4 Wire Leads, ingress protection IP57 - Dust Protected, Waterproof.
In Stock: 2,735
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 15.30mm |
| Air Flow | 37.0 CFM (1.04m³/min) |
| Static Pressure | 0.170 in H2O (42.3 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) |
| Noise | 36.0dB(A) |
| Power (Watts) | - |
| RPM | 4000 RPM |
| Termination | 4 Wire Leads |
| Ingress Protection | IP57 - Dust Protected, Waterproof |
| Operating Temperature | - |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 0.128 lb (58.06 g) |
Submit your RFQ for G8015H12B1-AGR-WS-EM and get a quote within 24 hours.
