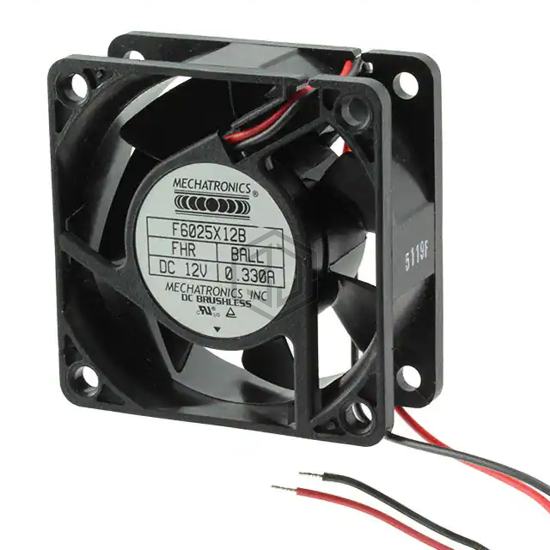

FAN 60X25MM LCKD RTR IP57 12VDC
F6025X12B2-RHR-EM is a DC Brushless Fans (BLDC) manufactured by Mechatronics Fan Group. FAN 60X25MM LCKD RTR IP57 12VDC. Key specifications: voltage - rated 12VDC, size / dimension Square - 60mm L x 60mm H, termination 3 Wire Leads, ingress protection IP57 - Dust Protected, Waterproof.
In Stock: 99
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 60mm L x 60mm H |
| Width | 25.00mm |
| Air Flow | 28.0 CFM (0.784m³/min) |
| Static Pressure | 0.370 in H2O (92.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor, Thermal Overload Protector (TOP) |
| Noise | 42.0dB(A) |
| Power (Watts) | - |
| RPM | 5800 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | IP57 - Dust Protected, Waterproof |
| Operating Temperature | - |
| Approval Agency | CE, cUL, TUV, UL |
| Weight | 0.139 lb (63.05 g) |
Submit your RFQ for F6025X12B2-RHR-EM and get a quote within 24 hours.
