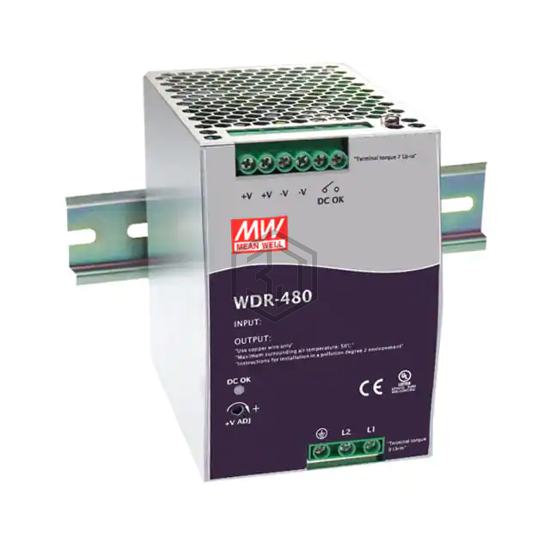

AC/DC CONVERTER 48V 480W
WDR-480-48 is a Industrial, DIN Rail Power Supplies manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 48V 480W. Key specifications: operating temperature -30°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm), number of outputs 1.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 180 ~ 550 VAC (2 Phase) |
| DC Voltage - Input (Min) | 254V |
| DC Voltage - Input (Max) | 780V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 480W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 93% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC |
| Size / Dimension | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) |
| Approval Agency | CB, CE, UL |
| Standard Number | - |
Submit your RFQ for WDR-480-48 and get a quote within 24 hours.
