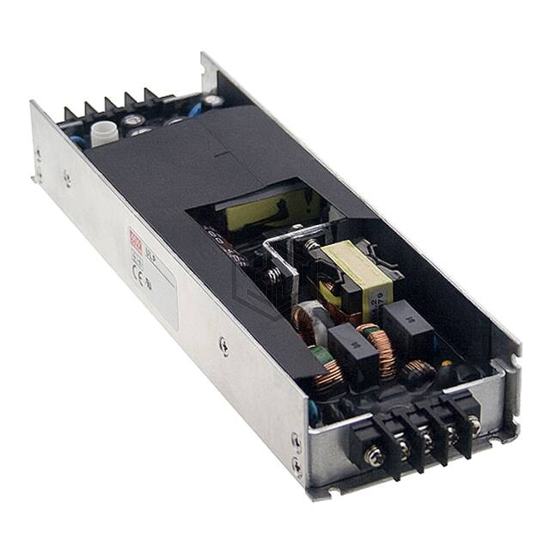

AC/DC CONVERTER 48V 154W
ULP-150-48 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 48V 154W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 90 ~ 295 VAC, 127 ~ 417 VDC, size / dimension 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 295 VAC, 127 ~ 417 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 3.2 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 154W |
| Applications | LED Lighting |
| Voltage - Isolation | 3.75 kV |
| Efficiency | 93% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) |
| Approval Agency | CE |
| Standard Number | - |
