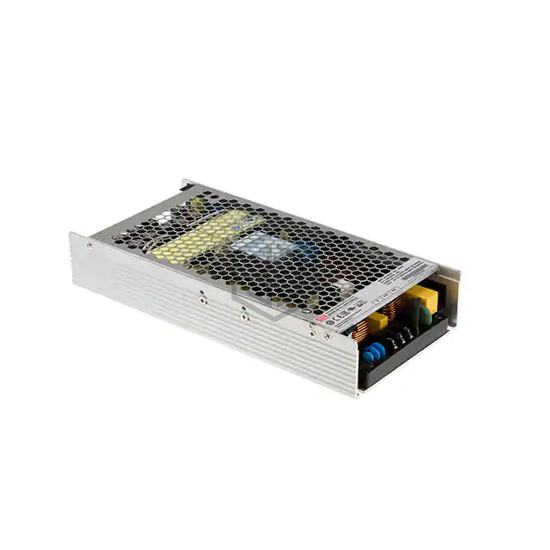

AC/DC CONVERTER 24V 1008W
UHP-1000-24 is a AC DC Converters manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 24V 1008W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 250 ~ 370 VDC, size / dimension 9.45" L x 4.53" W x 1.61" H (240.0mm x 115.0mm x 41.0mm).
In Stock: 189
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 250 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 42 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 1008W |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 3.75 kV |
| Efficiency | 95% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Remote On/Off, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 9.45" L x 4.53" W x 1.61" H (240.0mm x 115.0mm x 41.0mm) |
| Approval Agency | CB, CE, cURus, EAC, TUV |
| Standard Number | - |
Submit your RFQ for UHP-1000-24 and get a quote within 24 hours.
