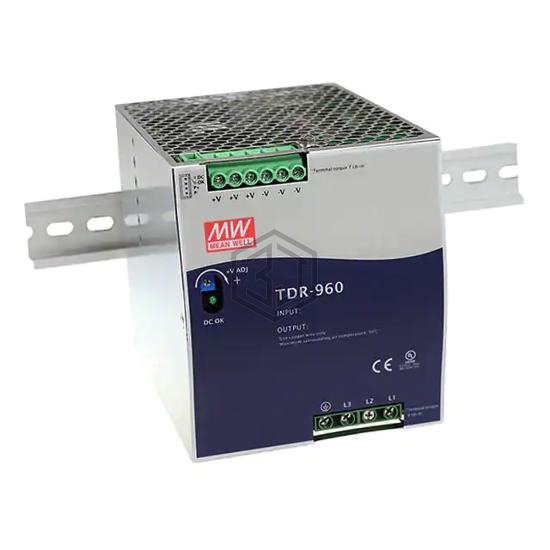

AC/DC CONVERTER 24V 960W
TDR-960-24 is a Industrial, DIN Rail Power Supplies manufactured by MEAN WELL USA Inc.. AC/DC CONVERTER 24V 960W. Key specifications: operating temperature -30°C ~ 70°C (With Derating), current - output (max) 40A, size / dimension 5.91" L x 4.33" W x 4.93" H (150.0mm x 110.0mm x 125.2mm), number of outputs 1.
In Stock: 104
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 340 ~ 550 VAC (3 Phase) |
| DC Voltage - Input (Min) | 480V |
| DC Voltage - Input (Max) | 780V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 960W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 94% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC |
| Size / Dimension | 5.91" L x 4.33" W x 4.93" H (150.0mm x 110.0mm x 125.2mm) |
| Approval Agency | CB, CE, cULus |
| Standard Number | - |
Submit your RFQ for TDR-960-24 and get a quote within 24 hours.
