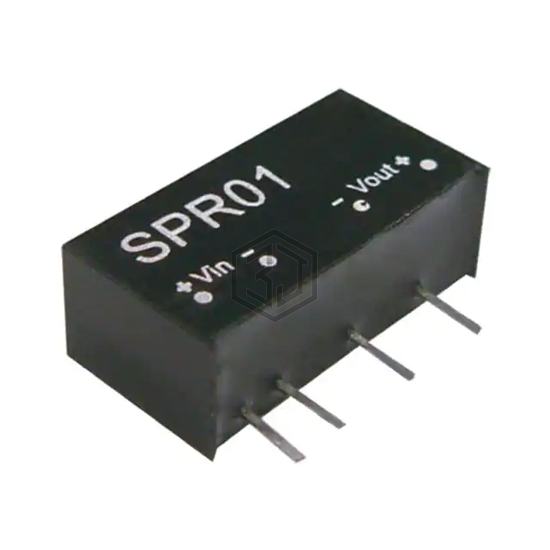

DC DC CONVERTER 9V 900MW
SPR01O-09 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER 9V 900MW. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 71°C (With Derating), package / case 6-SIP Module, 4 Leads, current - output (max) 100mA.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 43.2V |
| Voltage - Input (Max) | 52.8V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA |
| Power (Watts) | 900 mW |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | OCP, SCP |
| Operating Temperature | -25°C ~ 71°C (With Derating) |
| Efficiency | 56% |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.1mm x 10.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for SPR01O-09 and get a quote within 24 hours.
