DC DC CONVERTER 15V 1W

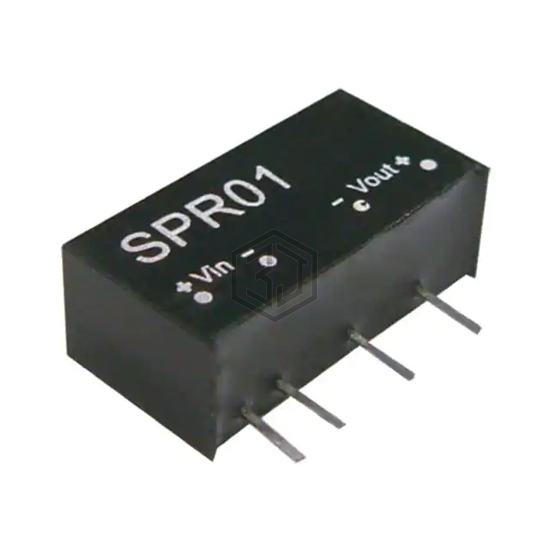

SPR01L-15 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER 15V 1W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 71°C (With Derating), package / case 6-SIP Module, 4 Leads, current - output (max) 67mA.
In Stock: 57
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 67mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1 kV |
| Applications | ITE (Commercial) |
| Features | OCP, SCP |
| Operating Temperature | -25°C ~ 71°C (With Derating) |
| Efficiency | 60% |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.1mm x 10.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
