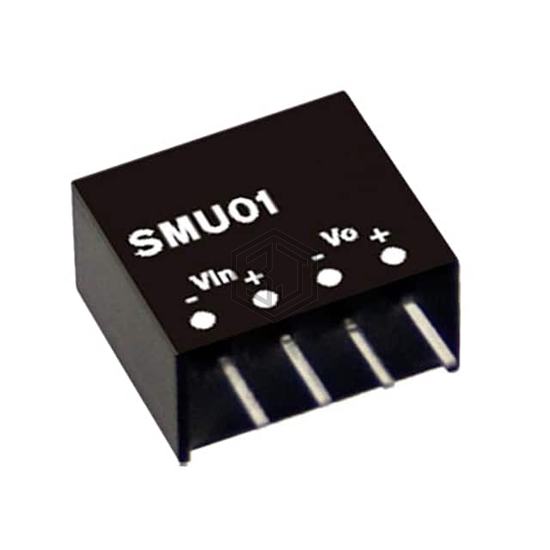

DC DC CONVERTER 12V 1W
SMU01N-12 is a DC DC Converters manufactured by MEAN WELL USA Inc.. DC DC CONVERTER 12V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 90°C (With Derating), package / case 4-SIP Module, current - output (max) 84mA.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 84mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | OCP, SCP |
| Operating Temperature | -40°C ~ 90°C (With Derating) |
| Efficiency | 77% |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.1mm x 10.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for SMU01N-12 and get a quote within 24 hours.
