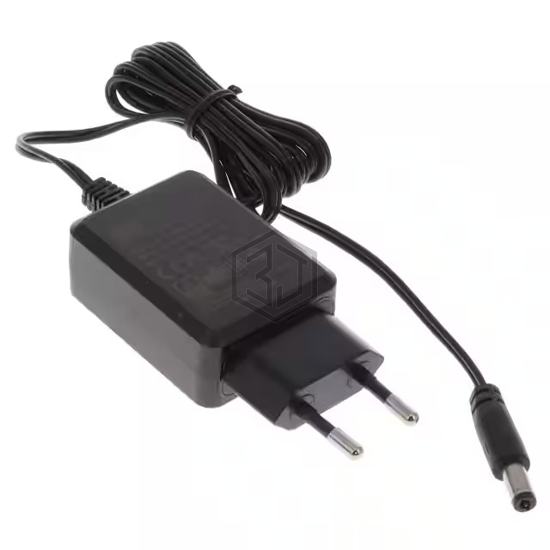

AC/DC WALL MOUNT ADAPTER 24V 15W
SGAS15E24-P1J is a AC DC Desktop, Wall Adapters manufactured by MEAN WELL USA Inc.. AC/DC WALL MOUNT ADAPTER 24V 15W. Key specifications: operating temperature -20°C ~ 70°C, voltage - input 90 ~ 264 VAC, current - output (max) 625mA, size / dimension 2.27" L x 1.66" W x 0.97" H (57.6mm x 42.1mm x 24.7mm).
In Stock: 84
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | Europe |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 625mA |
| Power (Watts) | 15 W |
| No Load Power Consumption | 75mW |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | 86% |
| Operating Temperature | -20°C ~ 70°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 70.9" (1.80m) |
| Input Connector | CEE 7/16 |
| Features | - |
| Size / Dimension | 2.27" L x 1.66" W x 0.97" H (57.6mm x 42.1mm x 24.7mm) |
| Approval Agency | CB, CE, EAC, FCC, GS, TUV, UKCA |
| Standard Number | 62368-1 |
