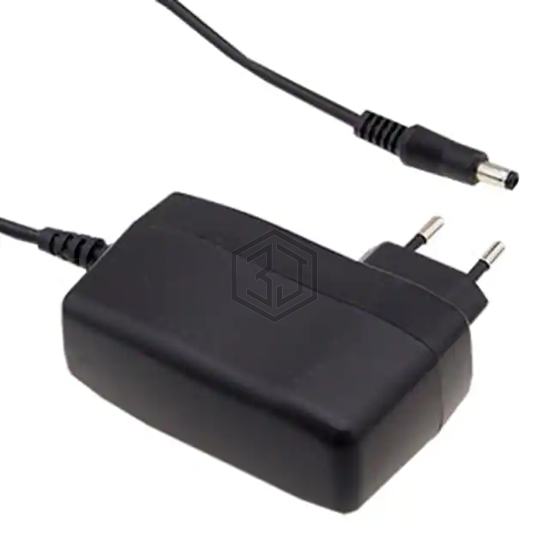

AC/DC WALL MNT ADAPTER 7.5V 45W
SGA60E07-P1J is a AC DC Desktop, Wall Adapters manufactured by MEAN WELL USA Inc.. AC/DC WALL MNT ADAPTER 7.5V 45W. Key specifications: operating temperature -20°C ~ 50°C, voltage - input 90 ~ 264 VAC, current - output (max) 6A, size / dimension 3.68" L x 1.38" W x 2.03" H (93.5mm x 35.0mm x 51.5mm).
In Stock: 74
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | Europe |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 7.5V |
| Current - Output (Max) | 6A |
| Power (Watts) | 45 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | -20°C ~ 50°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 39.4" (1.00m) |
| Input Connector | CEE 7/16 |
| Features | - |
| Size / Dimension | 3.68" L x 1.38" W x 2.03" H (93.5mm x 35.0mm x 51.5mm) |
| Approval Agency | CB, CE, GS |
| Standard Number | - |
